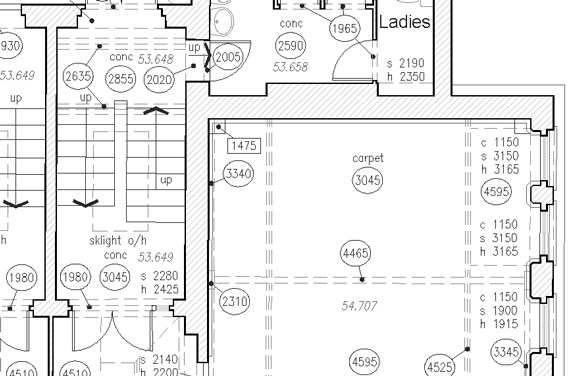

Floor Plans
Standard specification for floor plans include the following:
- Building structure
(Walls, partitioning, boxing, beams etc.) - Main external features
(Plinths, quoins, string courses etc.) - Rainwater, soil and vent pipes, chimneys, etc.
- Door swings
- Direction of joists
- Floor & landing levels
- Heights to structural openings
- Window cill and head heights
- Sanitary fittings, fixed furniture & appliances
|
|
|
|
|
|
