Topographic Surveys

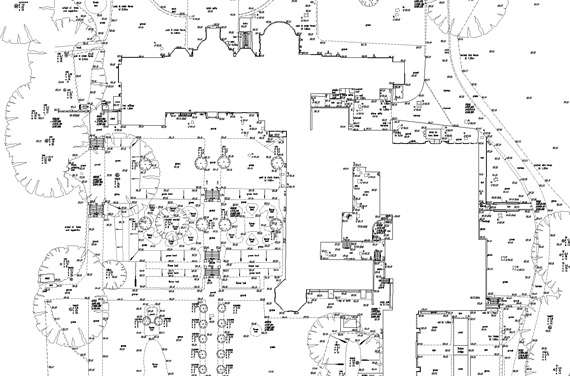

Typical Site Plans include:

  • Roads, paths & tracks
  • Walls, fences, railings, upstands with heights
  • Street furniture
  • Service cover and gully positions
  • Levels on a grid & at significant changes of slope
  • Trees over 150mm
  • Outline large areas of vegetation
  • Overhangs, overhead cables
  • Suface materials & markings
  • Road names, building names & North point
  • Station coordinates and descriptions
